PP-RV

Perforated Revision Grille

Download Catalogue
PP-RV PP-RV

Description

The perforated revision grille is designed to exhaust air from the room or intake air to the room. It is suitable for installation in dropped ceilings. A click or lock mechanism allows for easy opening and access to the plenum space.

Construction

Frame and front panel with following perforation options:

  • 54 %, diameter 6 mm holes (standard)
  • 38% or 43 % perforation, diameter 6 mm holes
  • 69 % perforation, 10 × 10 mm holes
  • 77 % perforation, 15 × 15 mm holes
  • Honeycomb 9 × 10 mm

The grille opens around the axis along the longer side. It closes with:

  • click mechanism – hidden (standard)
  • lock – visible (optional)

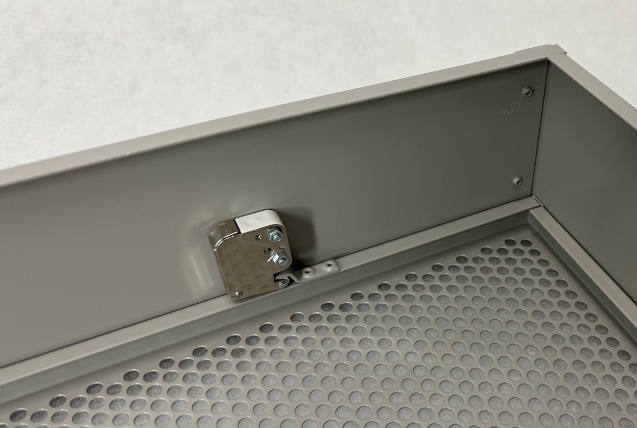

closing with click mechanism

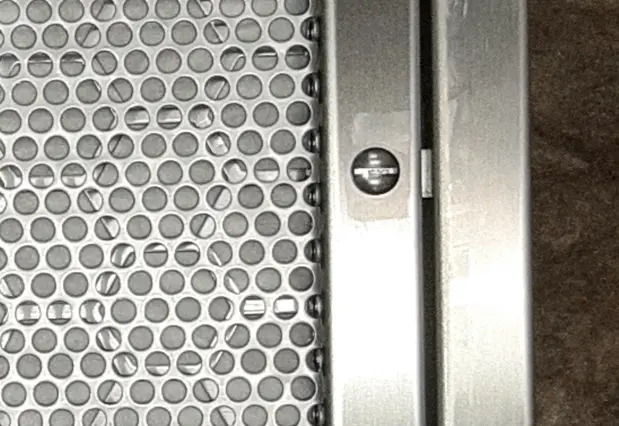

Closing with lock mechanism

Material and finish

Material options:

  • galvanized sheet metal (standard)
  • stainless steel sheet metal AISI 304 B2

Standard finish: RAL 9010 matte

Optional finish: any colour from the RAL palette.

Accessories

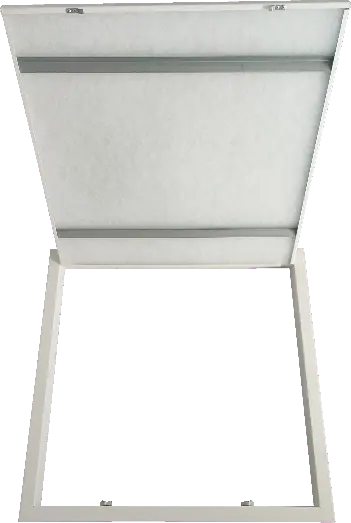

  • G2 or G3 filter, placed on the inner side of the front panel and fixed with a profile
  • safety cord (S)
  • PB plenum box
  • PB plenum box with a damper

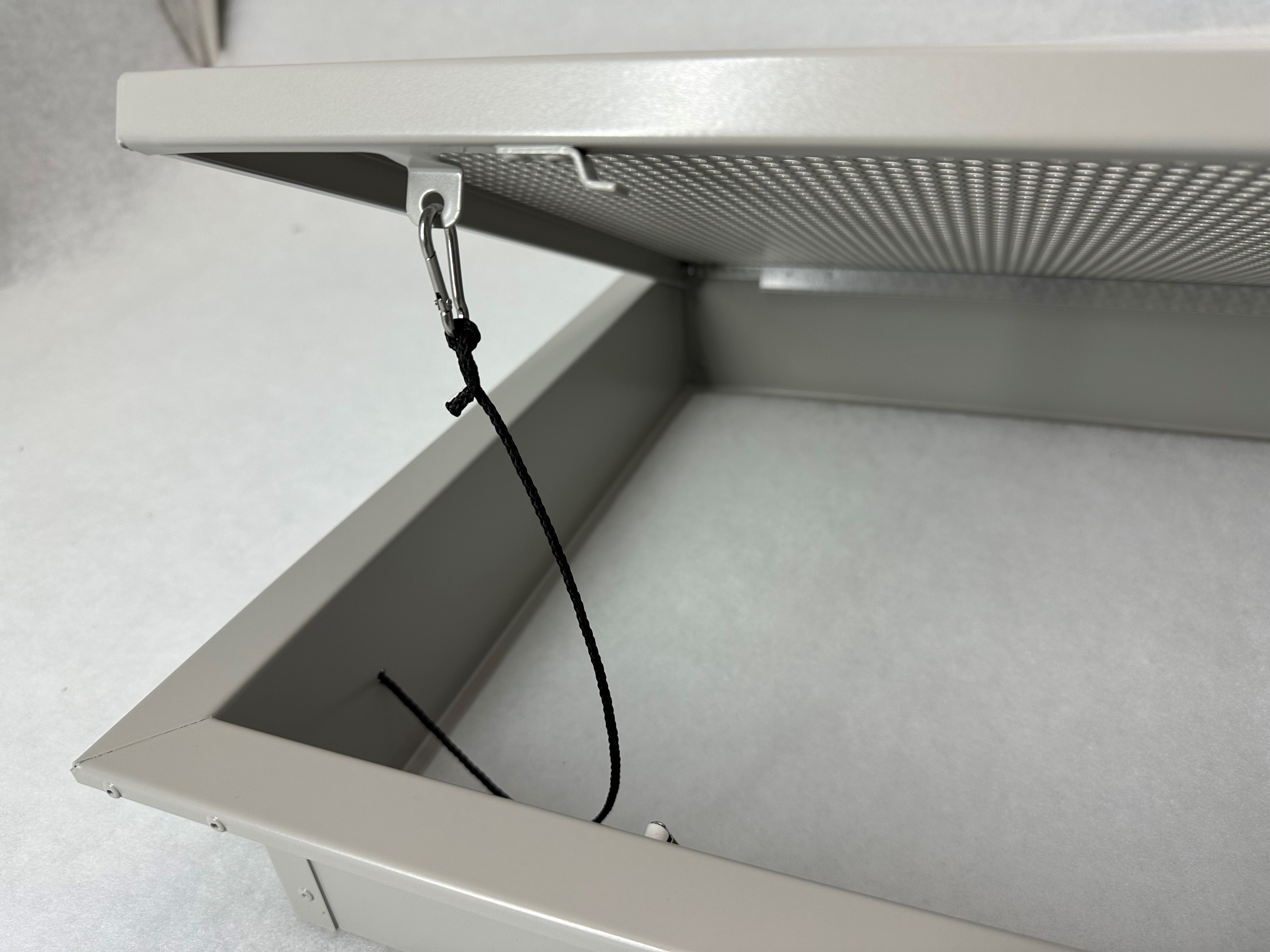

safety cord (S)

Dimensions

Standard dimensions:

  • Width B: 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300 mm
  • Height H: 300, 400, 500, 600 mm

Installation

Concealed fixing to dropped ceiling using angles and M6 screws (standard)

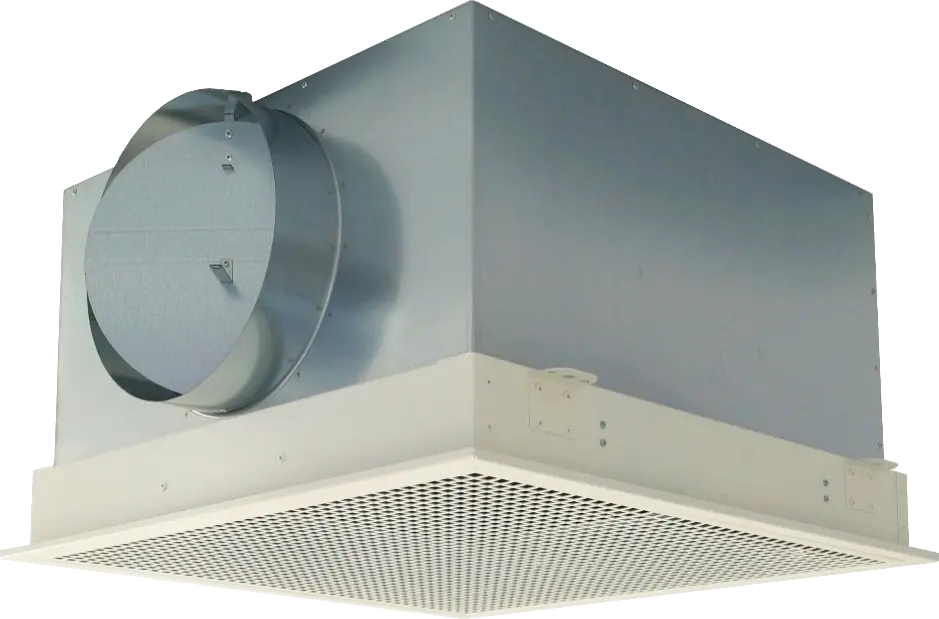

Installation on plenum box

Product Code

PP-RV Product
PP 6-54 Perforation type
600 Dimension b
300 Dimension h
ZN Material
RAL 9010 MAT Colour
KLIK Lock system
G3 S Accessories

Perforation type

Options:
  • PP 6-54
  • PP 6-43
  • PP 6-38
  • PP 10x10-69
  • PP 15x15-77
  • PP ...

Dimension b

Grille width in mm

Standard: 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300 mm

Dimension h

Grille height in mm

Standard: 300, 400, 500, 600 mm

Material

Options:
  • ZN – galvanized sheet metal (standard)
  • INOX – stainless steel sheet metal AISI 304

Colour

Standard: RAL 9010 matte

Optional: any RAL colour

Lock system

Options:
  • CLICK – click mechanism
  • KEY – lock mechanism

Accessories

Options (multiple can be selected):
  • G2 – filter G2
  • G3 – filter G3
  • S – safety cord
  • PB – plenum box
