ED-1

Swirl Diffuser

Download Catalogue Open Configurator
ED-1

Description

The ED-1 swirl diffuser is a diffuser with small to medium dimensions. It can be used for lower ceiling heights from 2.8 m to 3.5 m.

Construction

  • round or square diffuser
  • fixed blades
  • radial blade arrangement

Material and finish

Material options:

  • galvanized sheet metal (standard)
  • stainless steel sheet metal AISI 304 SB
  • stainless steel sheet metal AISI 316L SB

Standard finish: RAL 9010 matte

Optional finish: any colour from the RAL palette.

Accessories

PB-3

Round plenum box PB-3

PB-4

Round plenum box PB-4

okrogli

Round diffuser (ED-1R)

pp

Square diffuser on plate 595 × 595 mm (ED-1K PL)

kvadratni

Square diffuser (ED-1K)

reducir

Reducer (RD)

Dimensions

Ø D D1 Ø D2 Ø D3 H H1 Ø A
100 98 140 200 98 170
125 123 160 225 98 170 70 98
160 158 200 260 123 195 75 123
180 178 250 280 158 230 80 158
200 198 250 300 158 230 80 158
250 248 315 350 198 270 85 198
315 313 400 415 248 320 85 248
355 353 450 455 248 320 95 313
400 398 500 500 313 385 95 313
500 498 600 600 353 420 120 398

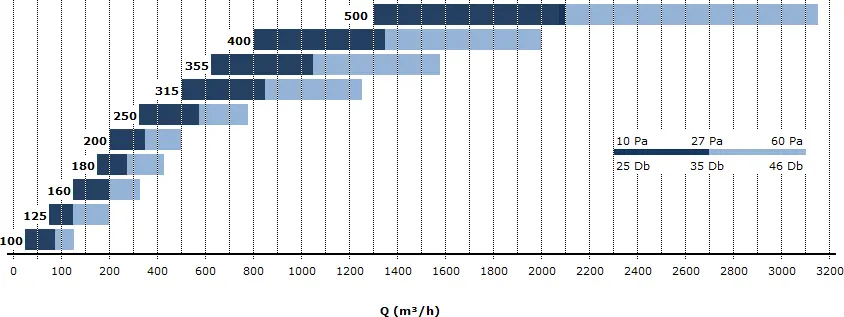

Quick selection

hitra_izbira

Product Code

ED-1 Product
R Shape
315 Diffuser dim.
RAL 9010 Finish
PP Accessories
PB-3 Plenum box
315 Plenum dim.
/ -
250 Connection dim.
H Position
L Damper
ISO 6mm Insulation

Shape

Options:
  • R – round
  • K – square
  • K PL – 595 × 595 mm

Diffuser dim.

Diffuser diameter in mm

Options: 125, 160, 200, 250, 315, 400 mm

Finish

Standard: RAL 9010 matte

Optional: any RAL colour

Accessories

Options (multiple can be selected):
  • RD – reducer
  • PP – perforated dispersing plate

Plenum box

Options:

Plenum dim.

Plenum box dimensions in mm

Connection dim.

Connection dimension in mm

Position

Connection position. Options:
  • H – horizontal
  • V – vertical

Damper

Options:
  • L – with damper

Insulation

Insulation thickness in mm:

Options: 6, 10, 13, 19 mm
