Twist-air

Description

The Twist air variable swirl diffuser can be used for various ceiling heights from 4 m to 12 m. It enables turbulent airflow, long-range constant airflow and the Coanda effect – where cold air is dispersed below the ceiling.

Construction

The diffuser consists of a nozzle-shaped housing and 10 centrally adjustable blades with a metal mechanism.

Material and finish

Aluminium sheet metal.

Standard finish: RAL 9010 matte

Optional finish: any colour from the RAL palette.

Actuator

Manual (C)

Central manual adjustment of blade position.

Electric actuator (E)

Ready for actuator mounting. Upon customer's request, the actuator can also be installed on the diffuser housing.

Actuator options:

  • LM230A
  • LM230A SR
  • LM24A
  • LM24A SR

Thermostatic actuator (T)

Thermostatic actuator installed on the diffuser measures intake air temperature and automatically adjusts the position of the blades. It works at temperatures between 22 ºC and 38ºC. It does not need an additional source of energy. Diffuser is set to an optimal position and activated in the factory. At temperature 38 ºC the blades are open at 85º angle. At temperature 20 ºC a mechanical element on the holder stops the blades at a 35º angle.

Kot lopatic

Angle of the blades depending on air temperature

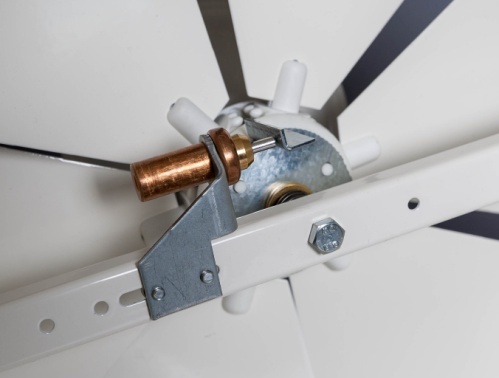

Termostatski mehanizem

Thermostatic mechanism for blade movement

Accessories

  • Perforated plate on the neck of the diffuser (PP)
  • Plenum box PB-3

Dimensions

PB-3
  • 1 – plenum box PB-3
  • 2 – connection opening
  • 3 – diffuser
  • 4 – reducer
  • 5 – mounting bar
  • 6 – blades
  • 7 – actuator
Dimensions
D ø D ø D1 ø D2 ø D3 H H1 H2
500 498 790 630 398 320 60 470
630 628 920 800 498 320 80 570

Installation

cev

Installation on air shaft

Komora

Installation on plenum box

Minimum Distance Between Diffusers

Minimum distance between two diffusers must be at least 5 times the diameter of the diffuser at minimum flow and 10 times the diameter of the diffuser at maximum flow.

Min razdalja

Angle of Blades and Air Flow Direction

angle

Angle of air flow

Cold

Cold air

Warm

Warm air

Product Code

TWIST AIR Product
C Actuator
630 Diffuser dim.
RAL 9010 Finish
PP Accessories
PB-3 Plenum box
630 Plenum dim.
/ -
250 Connection dim.
H Position
L Damper
ISO 6mm Insulation

Actuator

Options:
  • C – central manual blade position adjustment
  • E – ready for actuator
  • E code – installed actuator
  • T – installed thermostatic actuator

Diffuser dim.

Diffuser diameter in mm

Options: 500, 630 mm

Finish

Standard: RAL 9010 matte

Optional: any RAL colour

Accessories

Options (multiple can be selected):
  • PP – perforated dispersing plate

Plenum box

Options:

Plenum dim.

Plenum box dimension in mm (100 – 1000)

Connection dim.

Connection dimension in mm

Position

Connection position. Options:
  • H – horizontal
  • V – vertical

Damper

Options:
  • L – with damper

Insulation

Insulation thickness in mm:

Options: 6, 10, 13, 19 mm
