PP

Perforated Diffuser

Download Catalogue
PP

Description

The perforated diffuser is designed for supply and exhaust air from the room. It is suitable for installation in dropped ceilings.

Construction

Type PP

Fully perforated square diffuser.

  • 54 % perforation, diameter 6 mm holes

Type PP-A

Square diffuser with non-perforated edge.

  • 38 % or 43 % perforation, diameter 6 mm holes
  • 69 % perforation, 10 × 10 mm holes
  • 77 % perforation, 15 × 15 mm holes

Type PP-B

Square diffuser with non-perforated edge and an octagon in the centre of the panel.

  • 38 % or 43 % perforation, diameter 6 mm holes

Custom

Any diffuser size and perforation shape can be produced on request.

Material and finish

Material options:

  • galvanized sheet metal (standard 0.7 mm, options 0.6-1 mm)
  • stainless steel AISI 304 B2 0.6 mm (only type PP 6-54, PP 6-54/C1, PP 10x10-69 and PP 15×15-77)

Standard finish: RAL 9010 matte

Optional finish: any colour from the RAL palette.

Installation

  • installation on dropped ceiling
  • fastening with central screw to PB-2 plenum box

Accessories

Plenum box PB-2 – housing, connection, hangers.

Per customer’s request, the following can be added:

  • mounting bar for installing the diffuser
  • damper with handle inside and outside
  • perforated dispersing plate
  • sealing ring on the connection opening
  • insulation 6, 10, 13 or 19 mm on the inside or on the outside of the housing

Dimensions

dimensions
  • 1 – plenum box PB-2
  • 2 – round connection opening
  • 3 – volume control damper
  • 4 – mounting bar
  • 5 – dispersing plate (only for supply)
  • 6 – diffuser with central hole
  • 7 – diffuser without central hole
dimensions

PP 6-38 – holes diameter 6 mm, 38 %

PP 6-43 – holes diameter 6 mm, 43 %

PP 6-54 – holes diameter 6 mm, 54 %

PP 6-54 / C1

PP 6-54

PP 6-38 / A / C1
PP 6-43 / A / C1
PP 10x10-69 / A / C1
PP 15x15-77 / A / C1

PP 6-38 / A
PP 6-43 / A
PP 6-54 / A
PP 10x10-69 / A
PP 15x15-77 / A

PP 6-38 / B / C1

PP 6-38 / B

D D1 Ø D2 * H *
400 495 391 158 or 198 270 or 230
600 595 591 198 or 248 270 or 320
625 620 616 248 or 313 320 or 385

* Where two options are listed for Ø D2, the values correspond in pairs – the first Ø D2 corresponds to the first H value, and the second Ø D2 to the second H value.

Quick selection

hitra_izbira

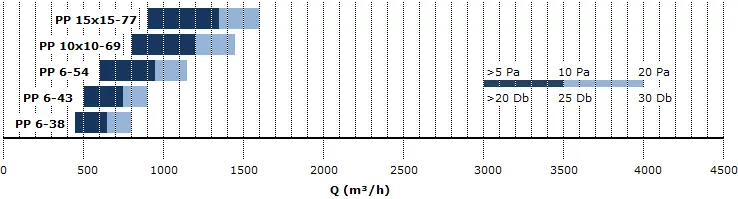

PP 400

hitra_izbira

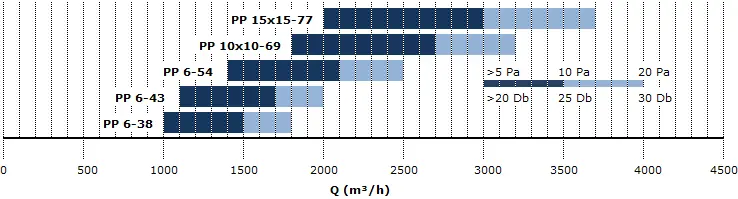

PP 600

hitra_izbira

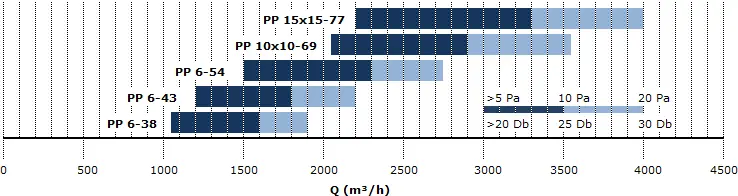

PP 625

Product Code

PP 6-54 Product
C1 Installation
600 Dimension
RAL 9010 MAT Colour
PB-2 Plenum box
600 Plenum dim.
/ -
200 Connection
H Position
PR Accessories
ISO 6mm Insulation

Product

Options:
  • PP 6-54
  • PP 6-43
  • PP 6-38
  • PP 10x10-69
  • PP 15x15-77
  • PP ...
  • ... A – non-perforated edge
  • ... B – non-perforated edge and an octagon in the centre

Installation

Options:
  • C1 – central hole for screw (installation on plenum box)
  • / – without central hole (installation on suspended modular ceiling)

Dimension

Connection in mm

Standard 400, 600, 625 mm

Optional: any dimension

Colour

Standard RAL 9010 MAT

Plenum box

Options:

Plenum dim.

Plenum box dimension in mm

Connection

Connection dimension in mm

Standard 200, 250, 315 mm

Optional: any dimension

Position

Connection position. Options:
  • H – horizontal
  • V – vertical

Accessories

Options (multiple can be selected):
  • PR – mounting bar
  • L – damper
  • PP – perforated plate

Insulation

Insulation thickness in mm:

Options: 6, 10, 13, 19 mm
