ED-2

Swirl Diffuser

Download Catalogue Open Configurator
ED-2

Description

The ED-2 simple swirl diffuser is a diffuser with small to medium dimensions. It can be used for low and medium ceiling heights from 2.8 m to 3.5 m.

Construction

  • funnel-shaped housing
  • fixed blades
  • radial blade arrangement

Material and finish

Material options:

  • carbon steel sheet metal
  • stainless steel sheet metal AISI 304 SB

Standard finish: RAL 9010 matte

Optional finish: any colour from the RAL palette.

Dimensions

ED-2

ED-2

ED-2N

ED-2N – short version of diffuser

ØD ØD1 ØD2 ØD3 ØA B C H h* H1 H2 H3 h3* H4 h4*
100 98 150 200 98 50 55 35 170 255 230 205 180
125 123 170 225 98 98 20 40 55 35 70 170 255 235 205 185
160 158 220 260 123 123 30 60 80 50 75 195 305 275 255 225
200 198 280 300 158 158 30 70 105 65 80 230 365 320 315 270
250 248 345 350 198 198 35 80 120 75 80 270 420 375 370 325
315 313 425 415 248 248 40 100 150 90 85 320 500 440 450 390
400 398 530 500 313 313 50 120 180 110 95 385 595 525 545 475
500 498 660 630 398 398 140 220 120 470 720 720 670 670

*Option: short version of diffuser – code ED-2N.

Accessories

pl

Plate with dimensions 595 × 595 mm for installation in prefabricated ceilings (PL)

reducir

Reducer (RD)

PB-3

Round plenum box PB-3

PB-4

Round plenum box PB-4

Installation on plenum box

With a central screw

installation screw pb3

Installation of diffuser ED-2 on plenum box PB-3 with a central screw

installation screw pb4

Installation of diffuser ED-2 on plenum box PB-4 with a central screw

With a side screw on the neck of the diffuser

installation side pb3

Installation of diffuser ED-2 on plenum box PB-3 with a side screw on the neck of the diffuser

installation side pb4

Installation of diffuser ED-2 on plenum box PB-4 with a side screw on the neck of the diffuser

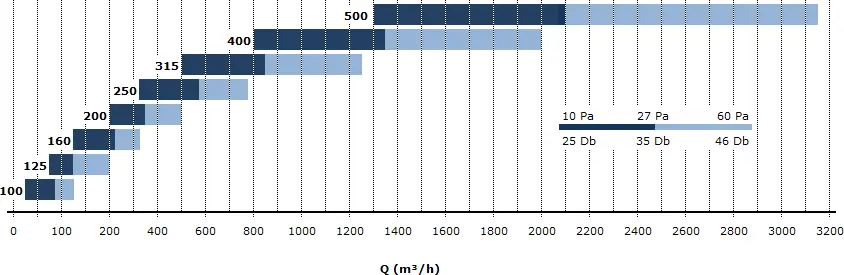

Quick selection

hitra_izbira

Product Code

ED-2 Product
B Installation
315 Diffuser dim.
RAL 9010 Finish
PP PL Accessories
PB-3 Plenum box
315 Plenum dim.
/ -
248 Connection dim.
H Position
L Damper
ISO 6mm Insulation

Product

Options:
  • ED-2 – high version of the diffuser
  • ED-2N – short version of the diffuser

Installation

Installation on plenum box. Options:
  • empty – installation with central screw
  • B – without central hole, installation with side screws on the neck of the diffuser

Diffuser dim.

Diffuser diameter in mm

Options: 100, 125, 160, 200, 250, 315, 400, 500 mm

Finish

Standard: RAL 9010 matte

Optional: any RAL colour

Accessories

Options (multiple can be selected):
  • RD – reducer
  • PP – perforated dispersing plate
  • PL – plate 595 × 595 mm

Plenum box

Options:

Plenum dim.

Plenum box dimension in mm

Connection dim.

Connection dimension in mm

Position

Connection position. Options:
  • H – horizontal
  • V – vertical

Damper

Options:
  • L – with damper

Insulation

Insulation thickness in mm:

Options: 6, 10, 13, 19 mm
